Cutting Toneboards on a Wooden Jig
« on: April 01, 2014, 11:38:10 AM »
Seems to have been several posts lately regarding toneboard jigs and a few specific to wooden jigs.  Iíve used a wooden jig since I started making duck calls over a year ago and thought Iíd share how my process has evolved.  Iím sure there are better ways to do this and I hope others will chime in with their methods and thoughts for improvement.  This post is probably targeting the new guys who have yet to invest in a custom hardened jig.

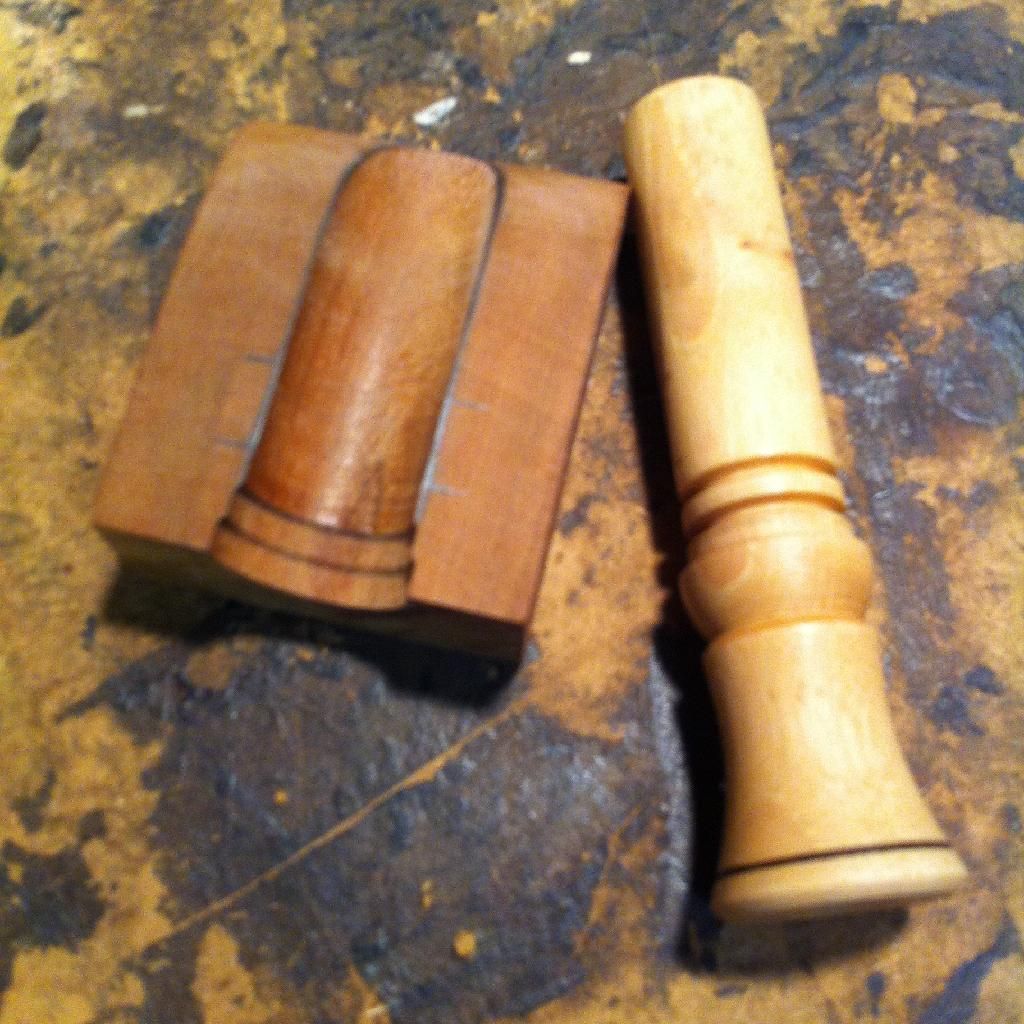

Hereís my wooden jig (made out of walnut) and a pecan toneboard ready for cutting.

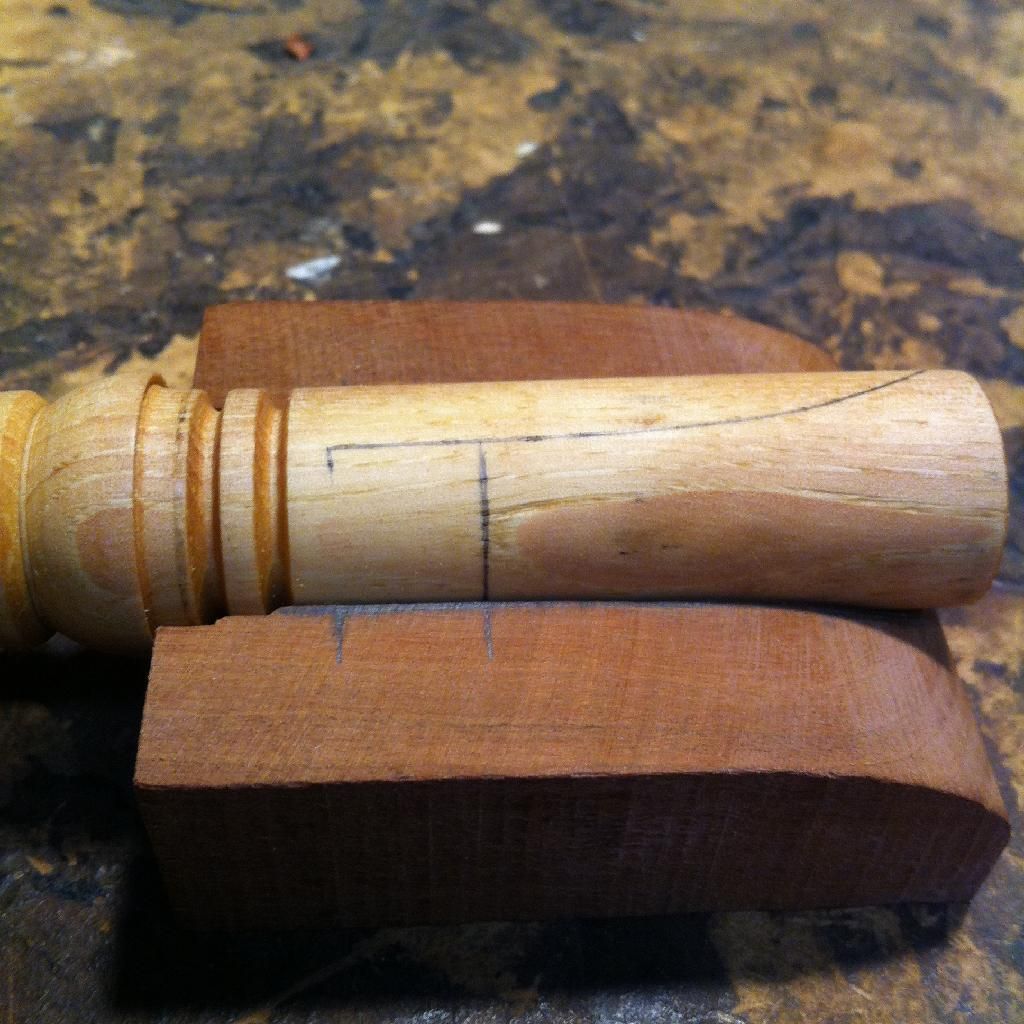

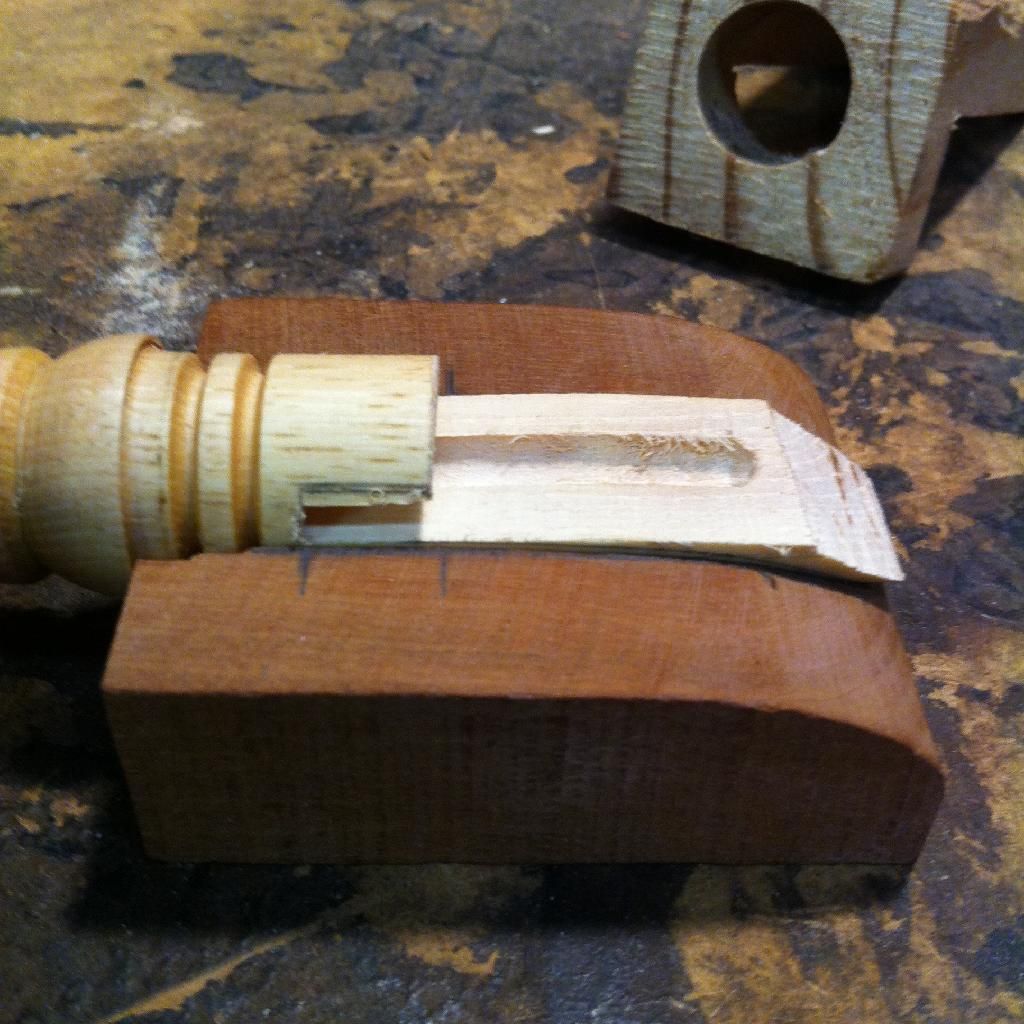

I lay the toneboard in the jig and trace the shape onto the tenon.  I have markings on each side of the jig to show where the cork notch will be.

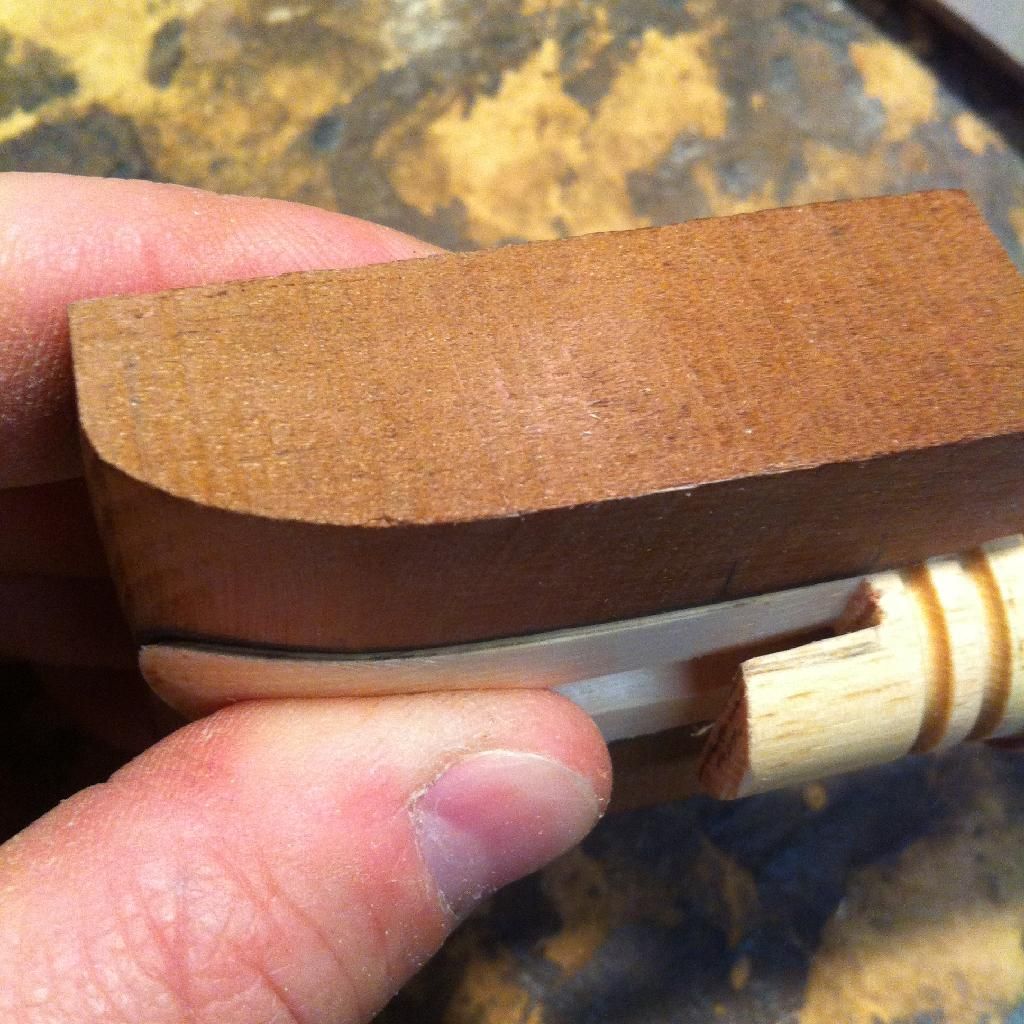

To mark the top of the cork notch, I just roll the insert in the jig and mark the line that will indicate the top of the cork notch.

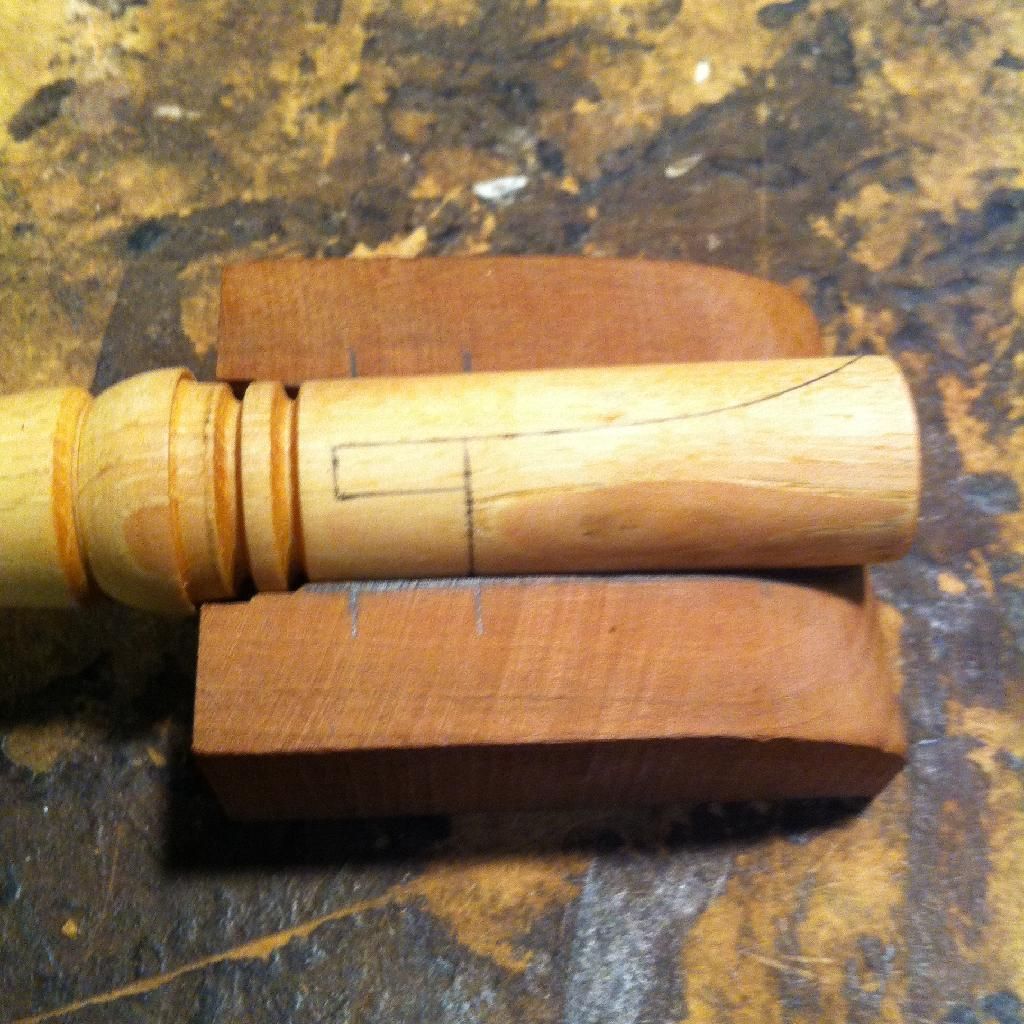

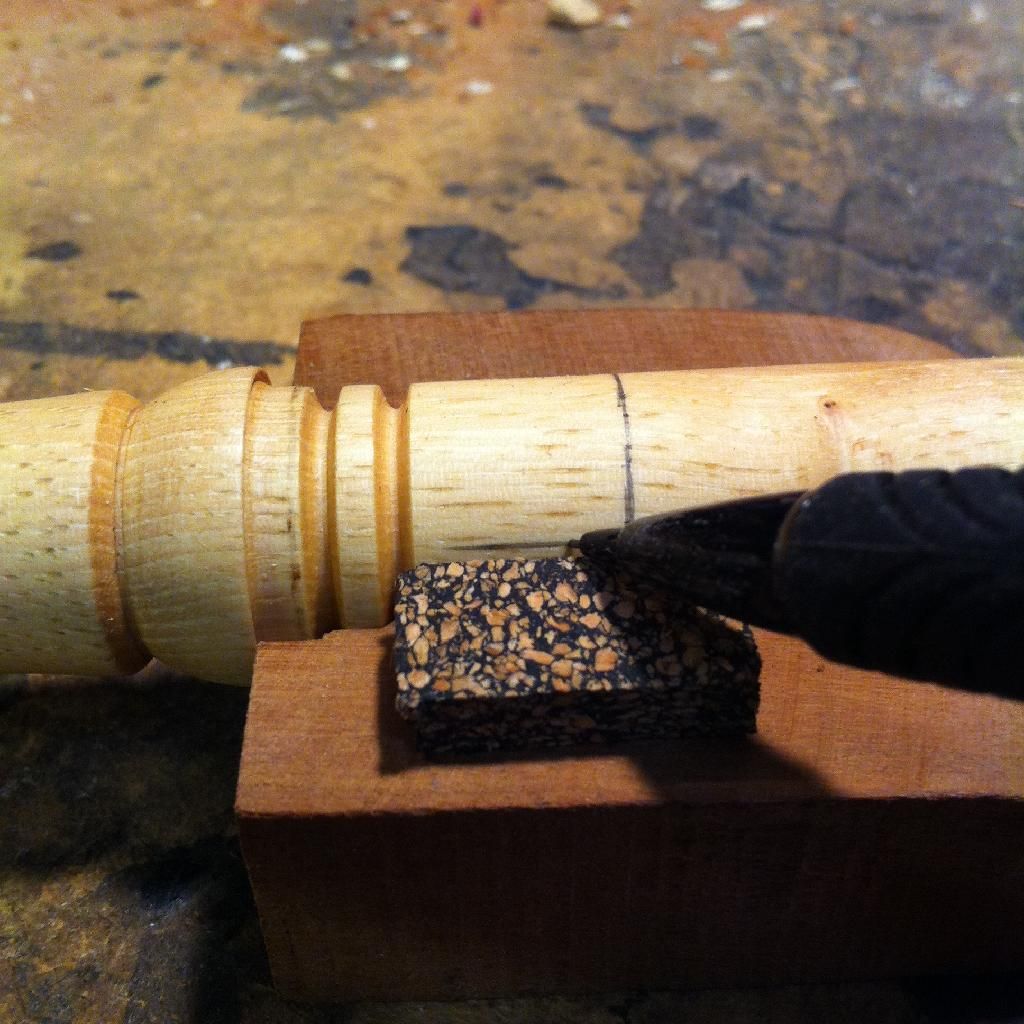

Next, I lay the precut cork on the jig and mark the thickness.  I do this on both sides of the tenon.


The insert now has the toneboard curvature and cork notch fully marked and is ready to cut on the bandsaw.

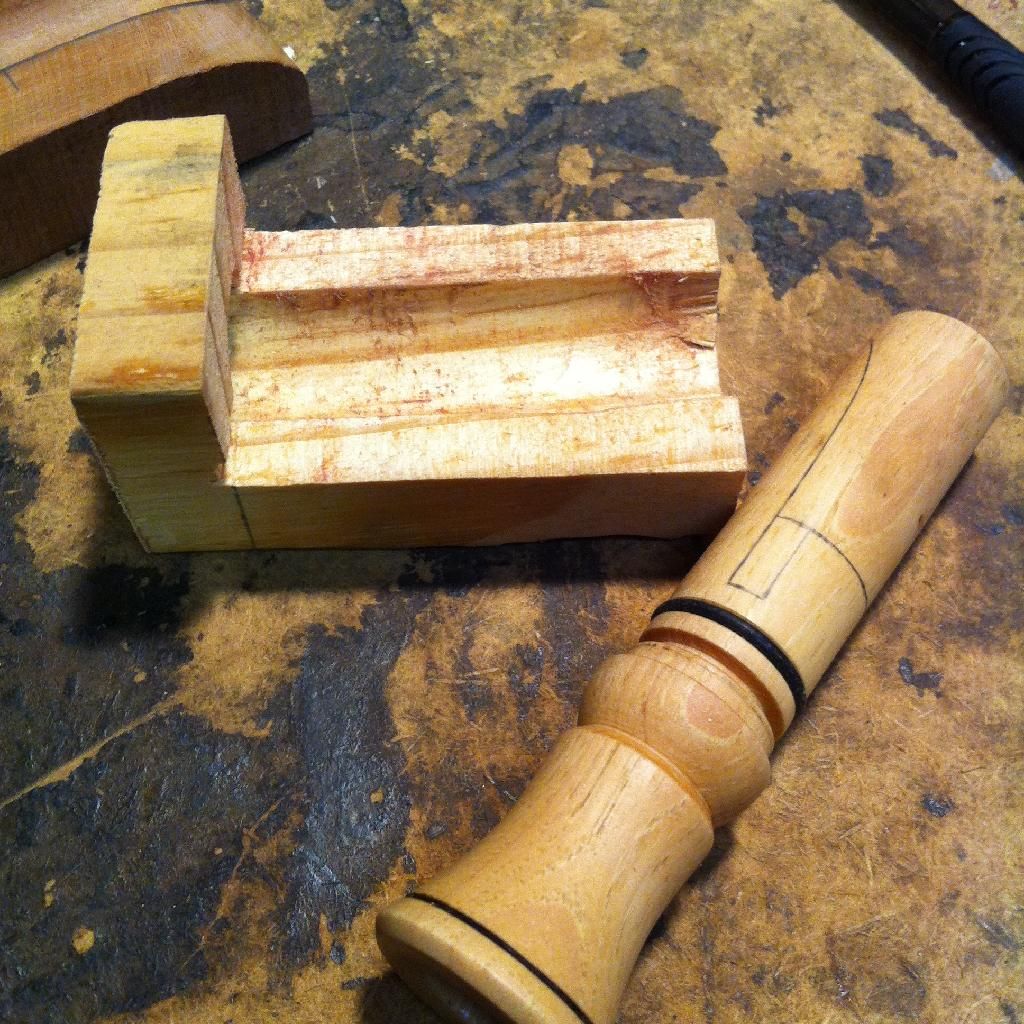

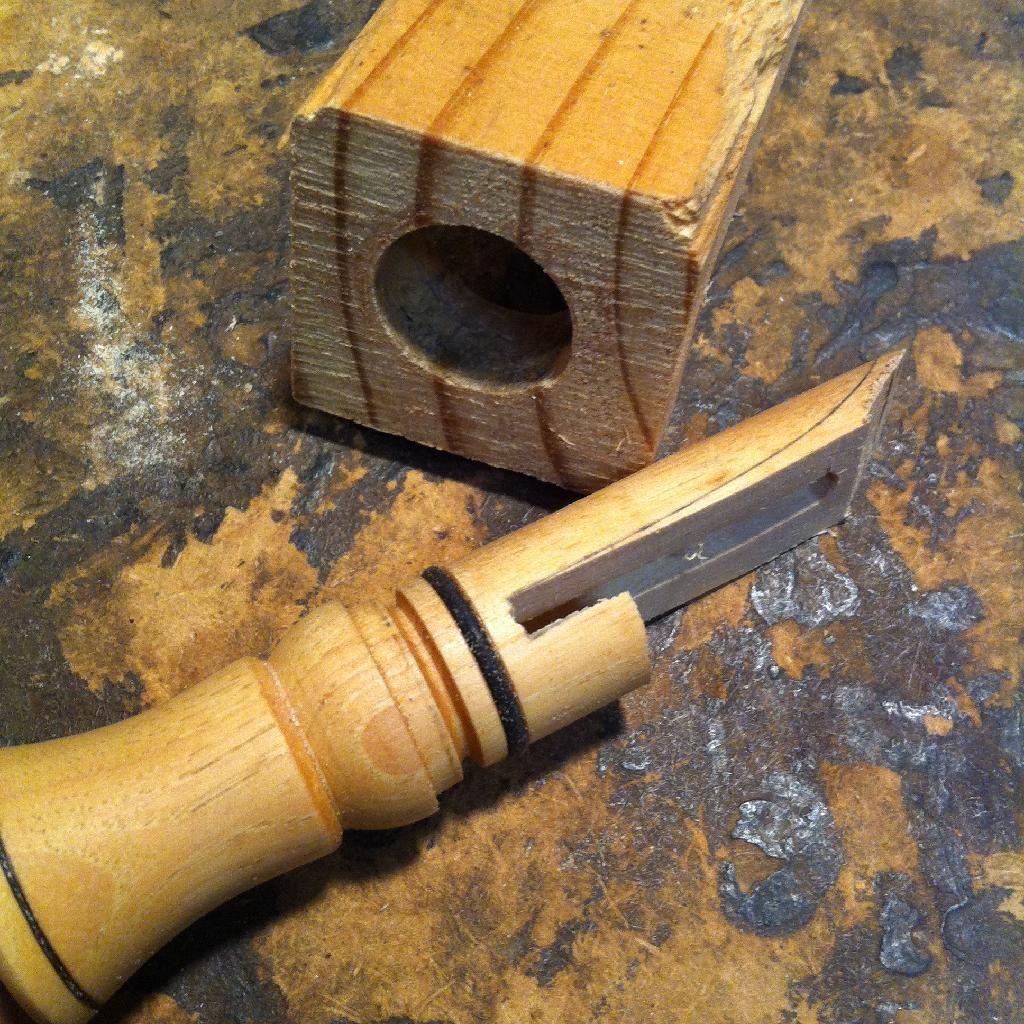

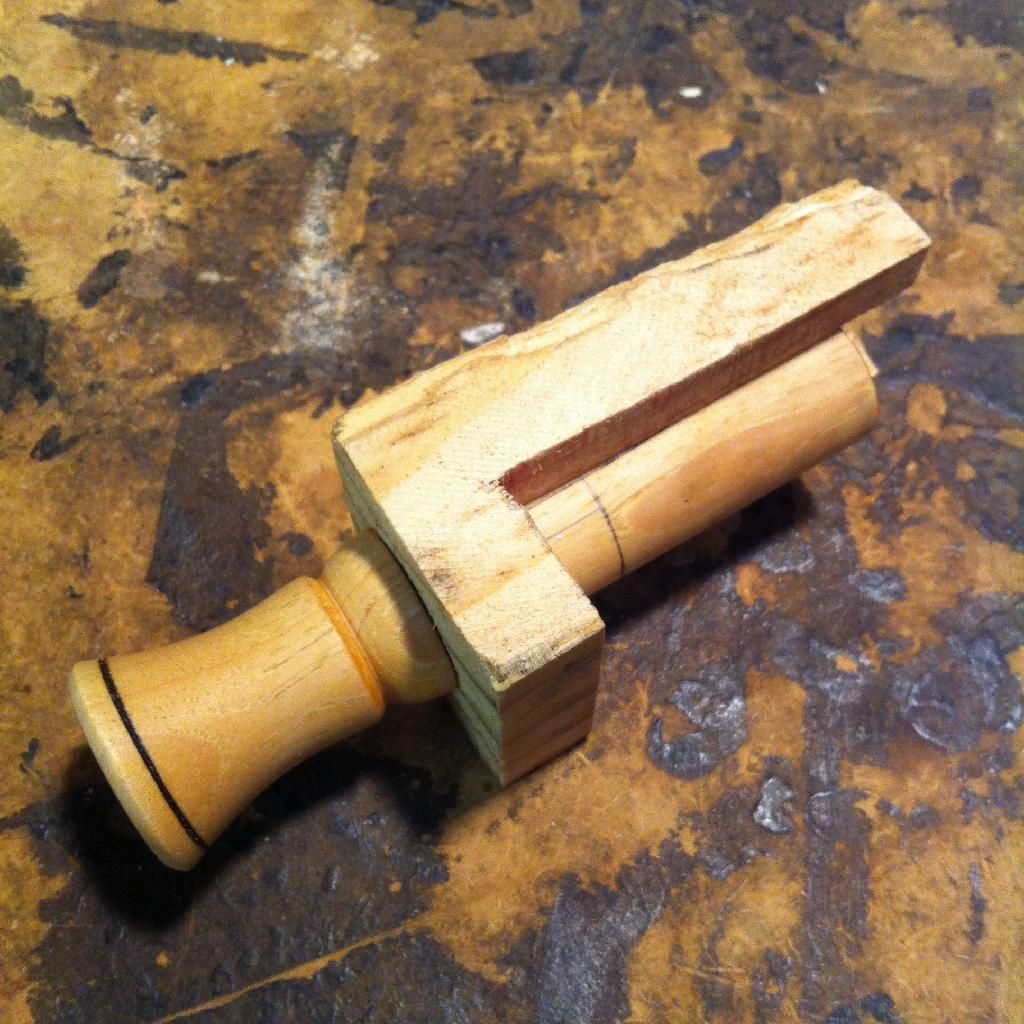

I made a flat jig out of scrap pine that I use to hold the insert square to the bandsaw while cutting.  I simply put on an o-ring and push the insert into the flat jig.

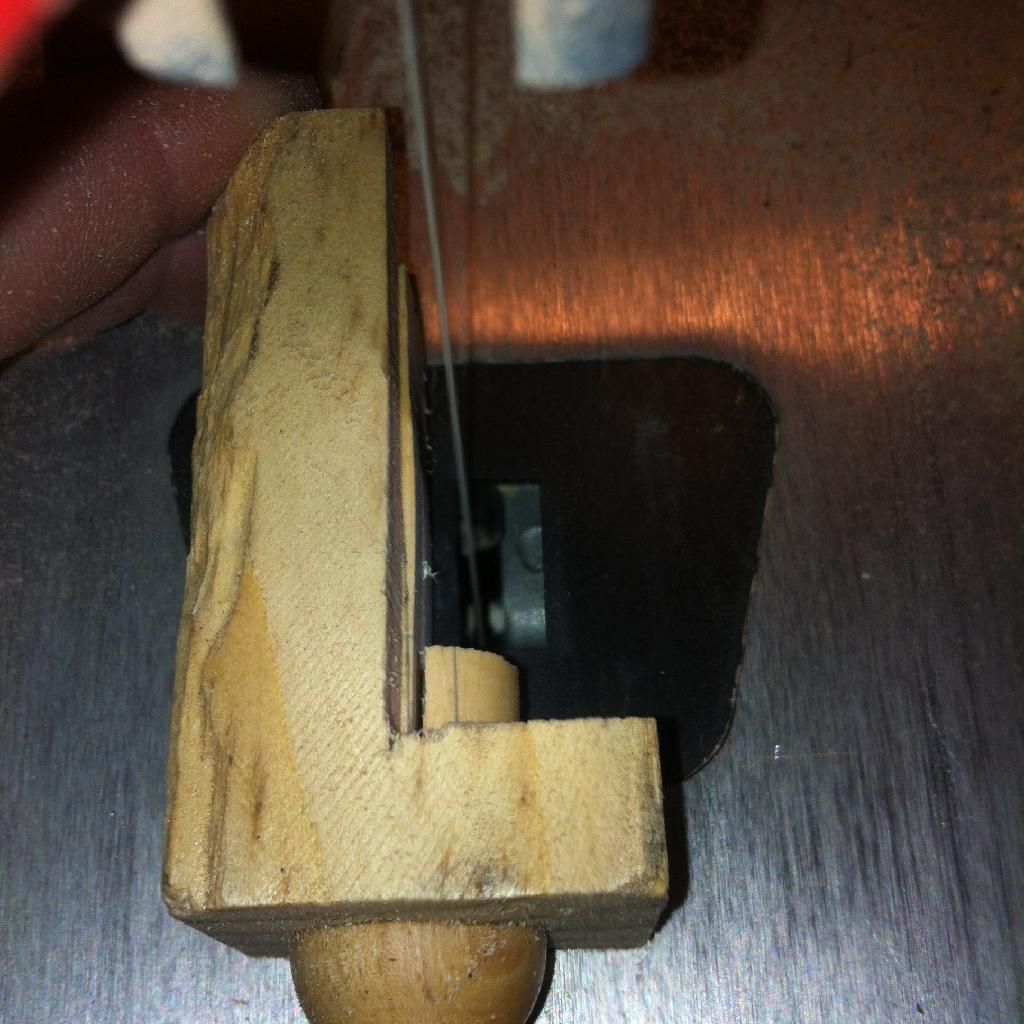

I donít let the bandsaw blade touch the flat jig when cutting.  My goal is to just cut it square and remove as much material as possible to reduce the amount of filing later.  I cut down the length of the toneboard first and then cut at the top cork notch line.  Then I finish out the cork notch using the markings made earlier.



I remove the insert from the flat jig and then freehand cut the tip of the toneboard.  Again, Iím just removing material to reduce the amount of filing needed.

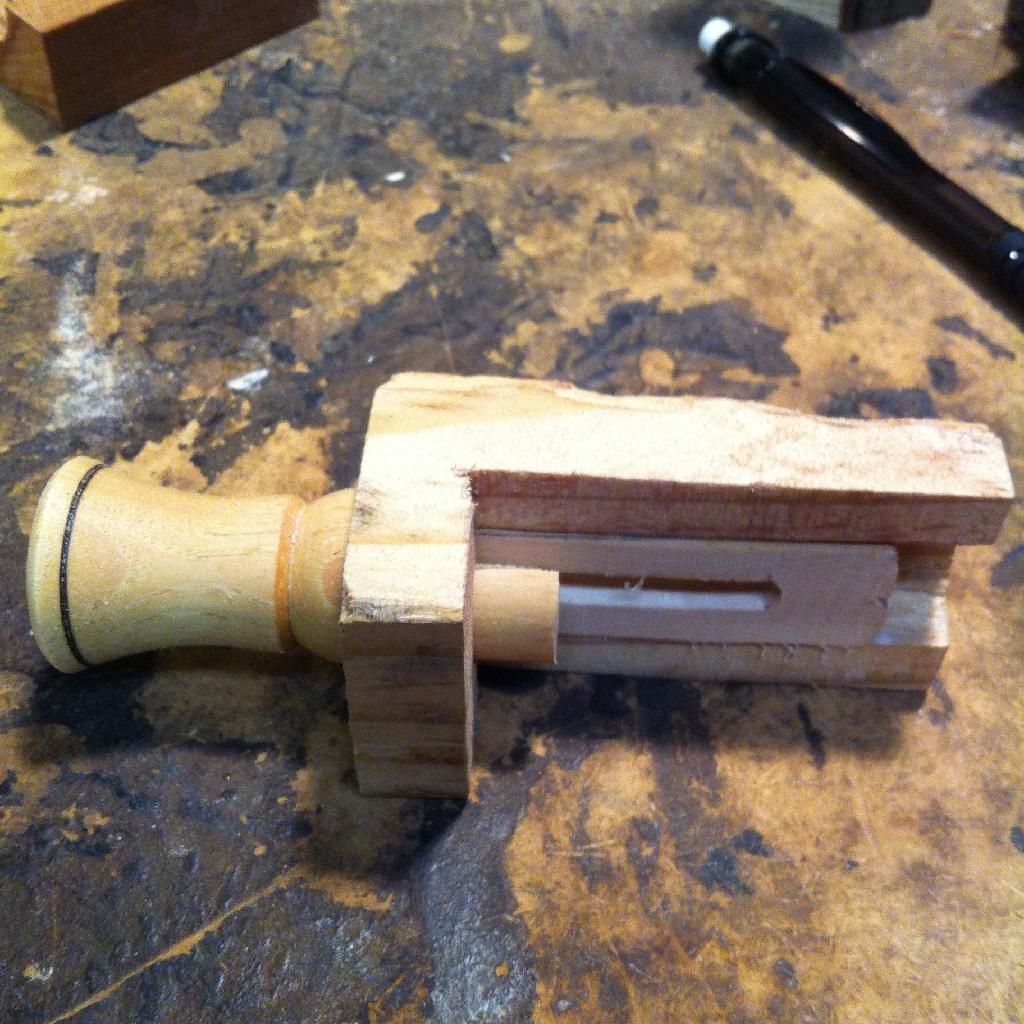

Hereís the insert back in the wooden jig.  As you can see, there is still a lot of work left to do.

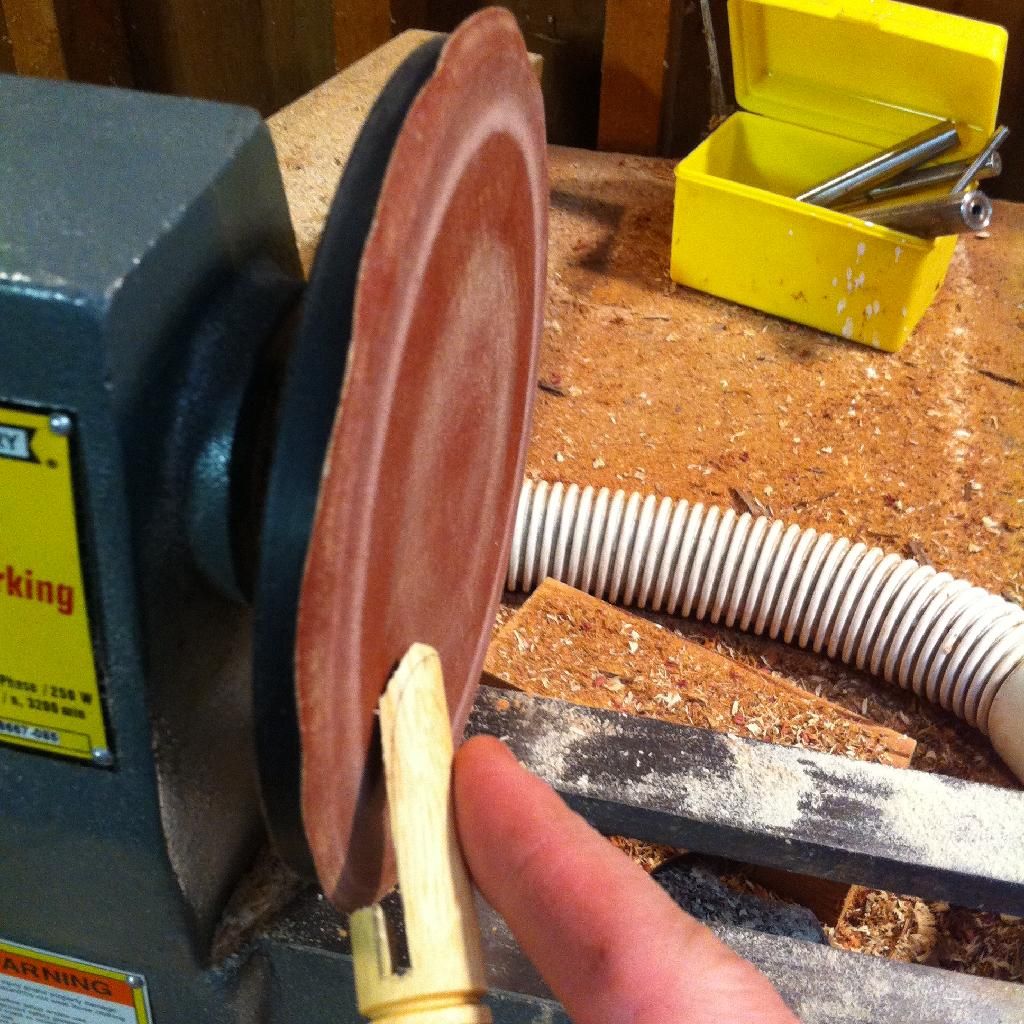

I use an adhesive sanding disc stuck to the faceplate on my lathe to do most of the shaping from here.  Using the lines I drew earlier, I sand at low speed until Iím close to the pencil marks.  This removes material faster than hand filing.

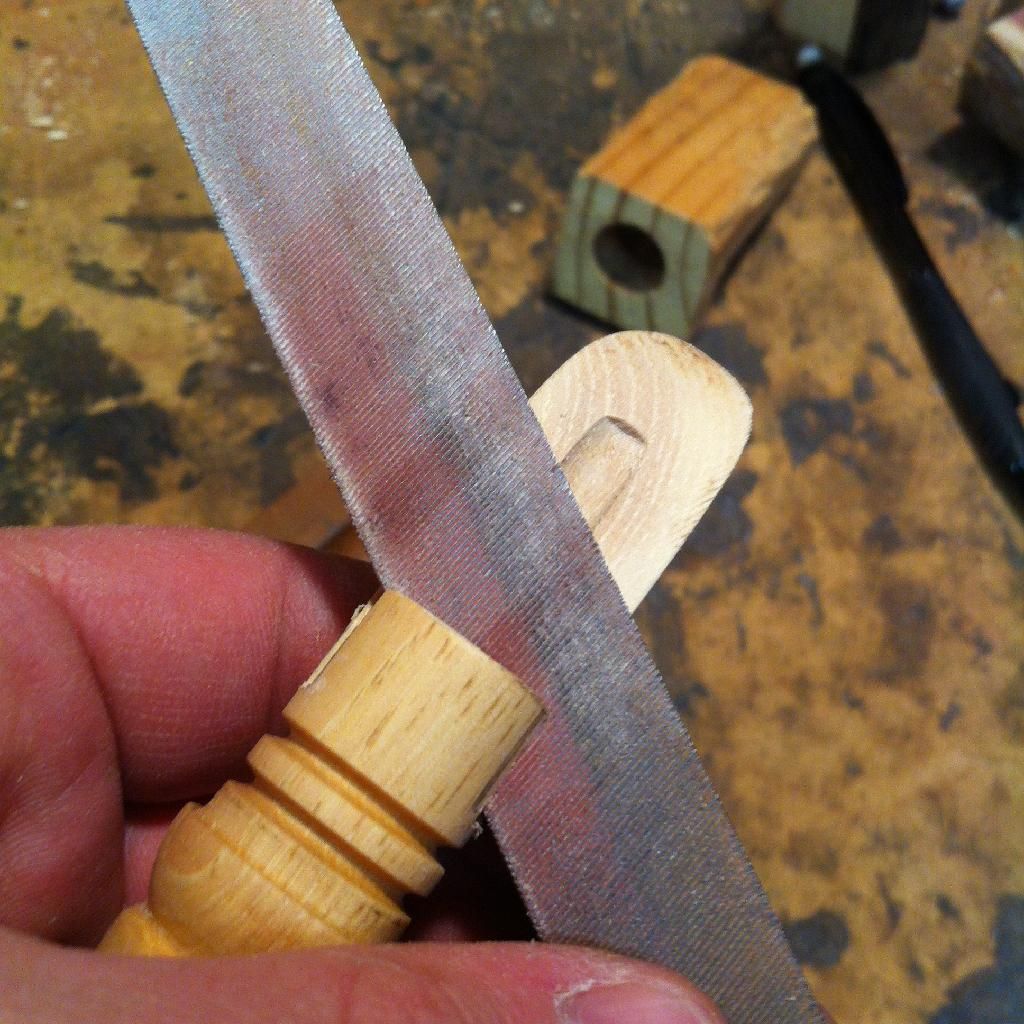

Once Iím close on the shape, I switch to filing by hand to fine tune the shape of the toneboard and cork notch.


Iím constantly putting the insert back into the wooden jig to see which areas need more sanding/filing.  As you can see, Iíve still got a bit more filing to do on this one to get the toneboard flush with the wooden jig.


Thatís about it.  Comments/questions welcome.
