Tone board practice
« on: June 28, 2013, 10:46:12 AM »

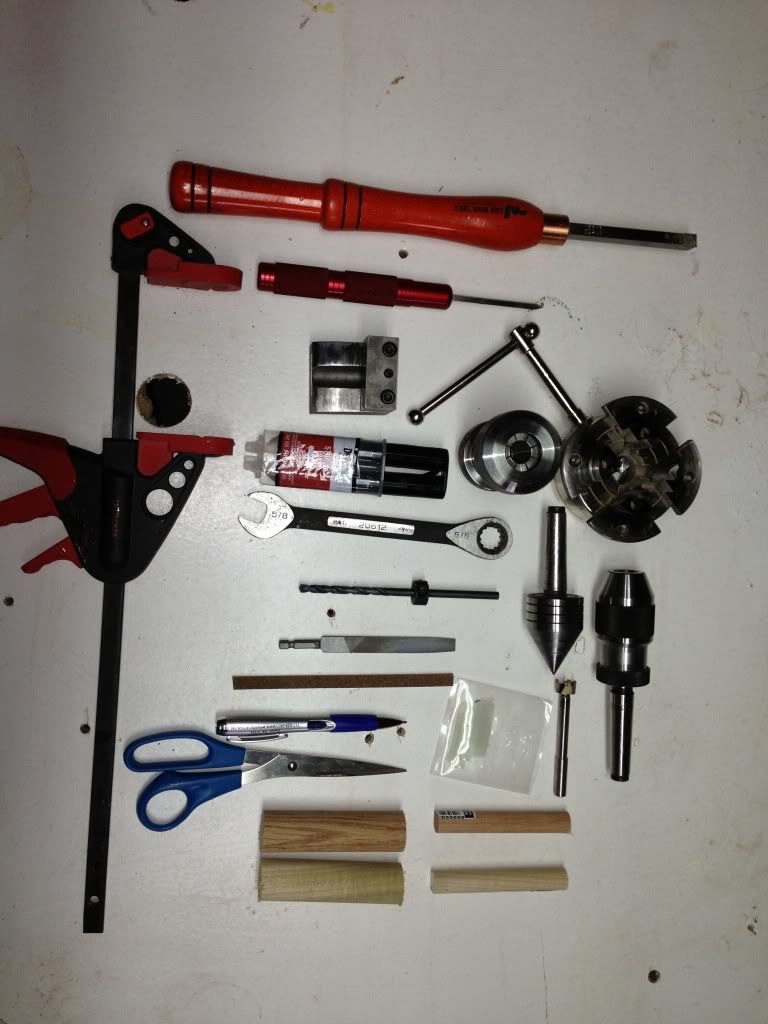

I'm sure this has been done before but I am trying get a consistent sound outta my tone boards and decided to make a concentrated effort to document it in case anyone wanted to see how I do it and the tools I use. I went to lowes and picked up some 5/8" oak and popular dowels and 1 1/8" oak and popular. Price was the deciding factor on this as it was about 15$ for all 4 pieces of wood. I will be doing an experiment so to speak to determine the difference if any in a 2 piece TB vs. 1 piece and will be using both wood types to determine this. Here's the tools I used along the way




Next thing I did was take the 1 1/8" dowels and cut a few pieces about 1 1/2" long to be drilled and insert the 5/8" dowel pieces.

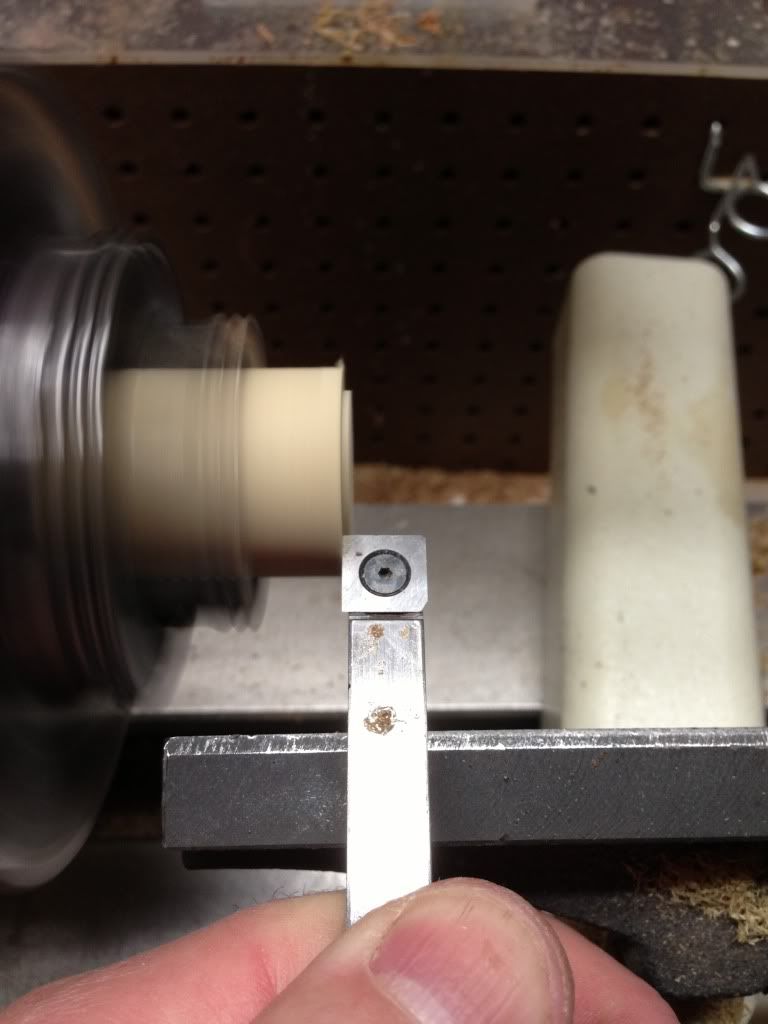

Next I chucked up the 1 1/8" dowel piece and squared up 1 end of the blank to prep it for drilling

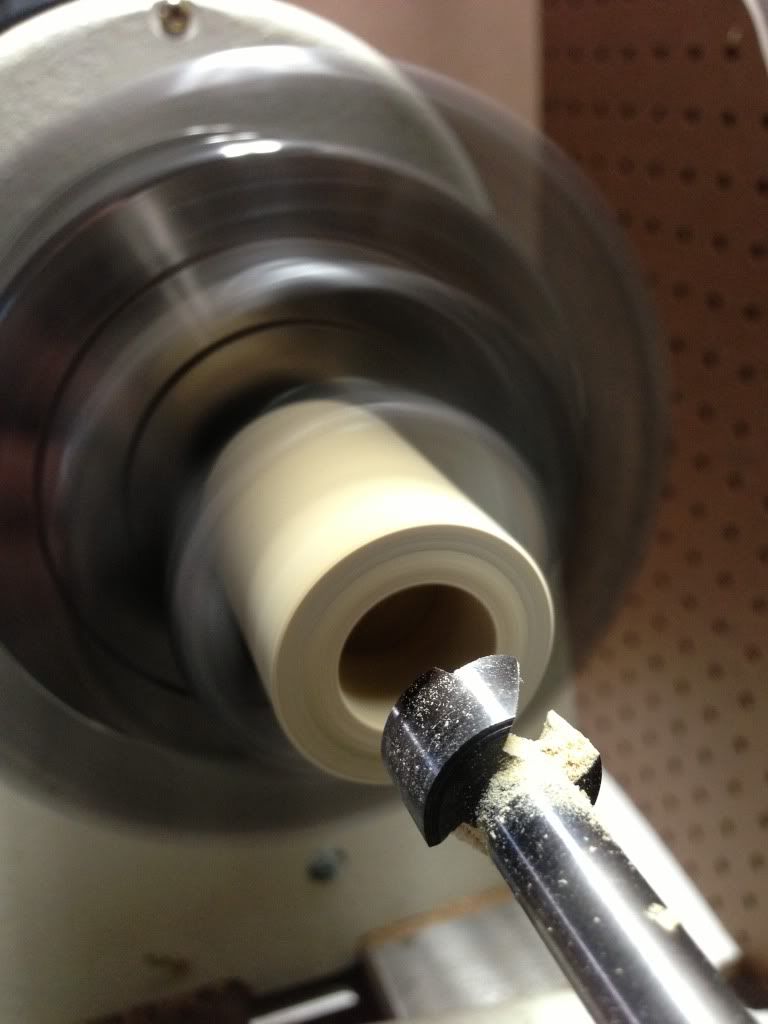

Next I drill using a fostner 5/8" bit and drill about 3/4" into the 1 1/2" piece.


So now that I've got the 1 1/8" dowel drilled I can take the 5/8" dowel and proceed to glue up the 2 pieces

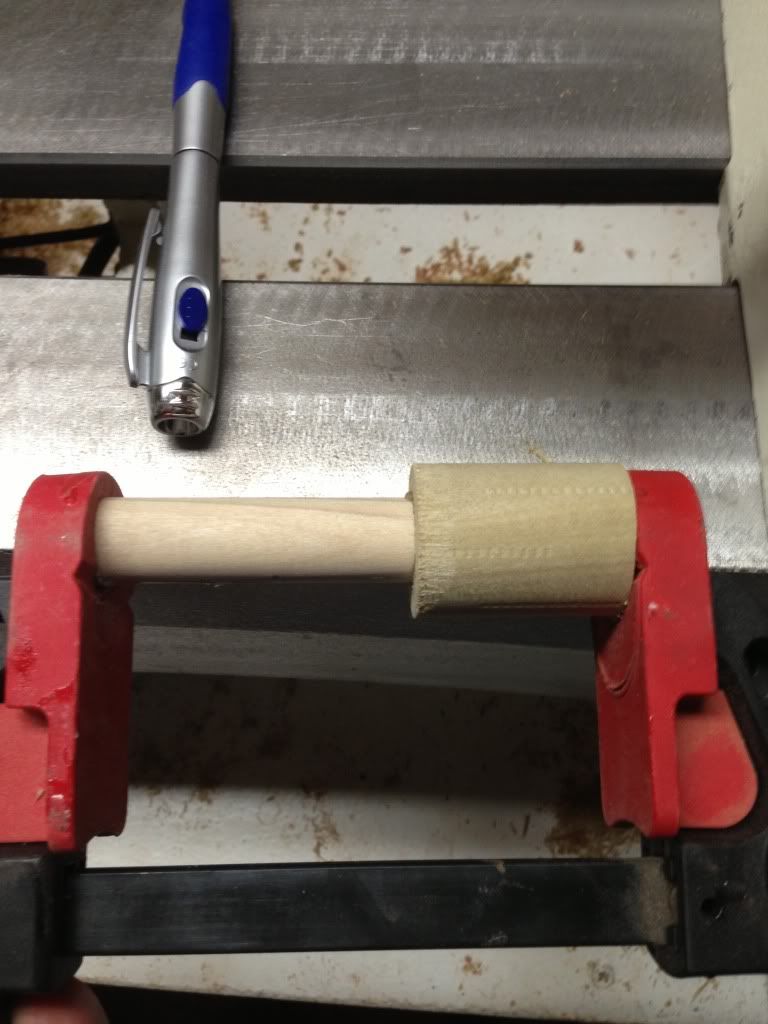

I use clear 2 part epoxy and a clamp to press the 2 together

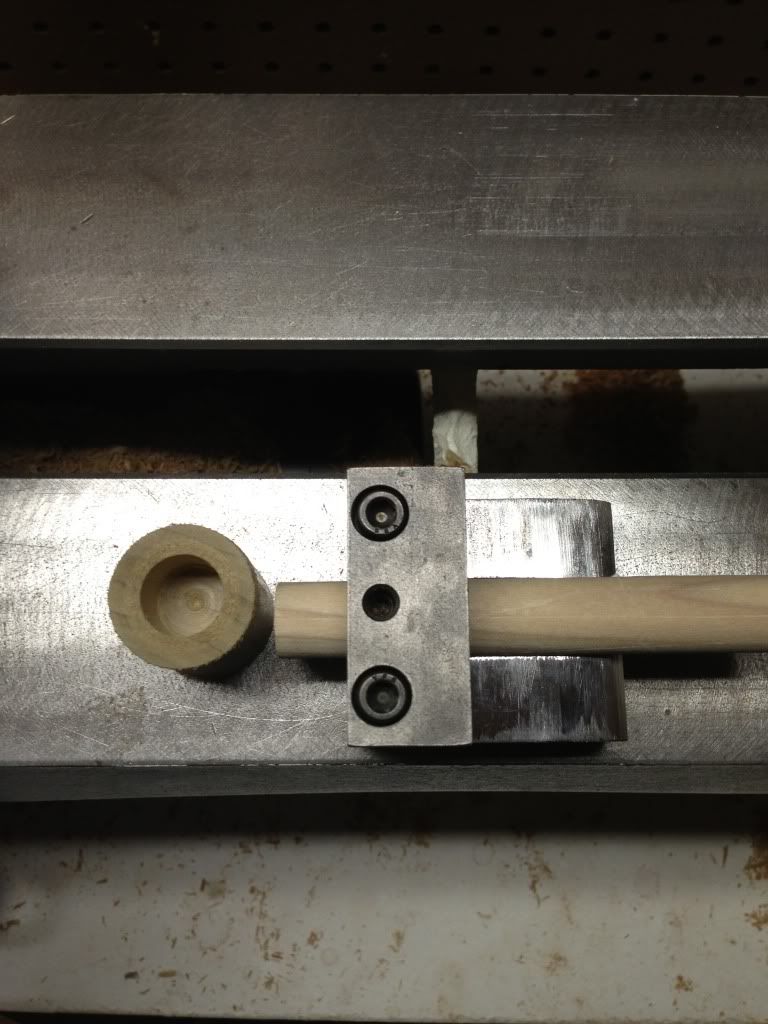

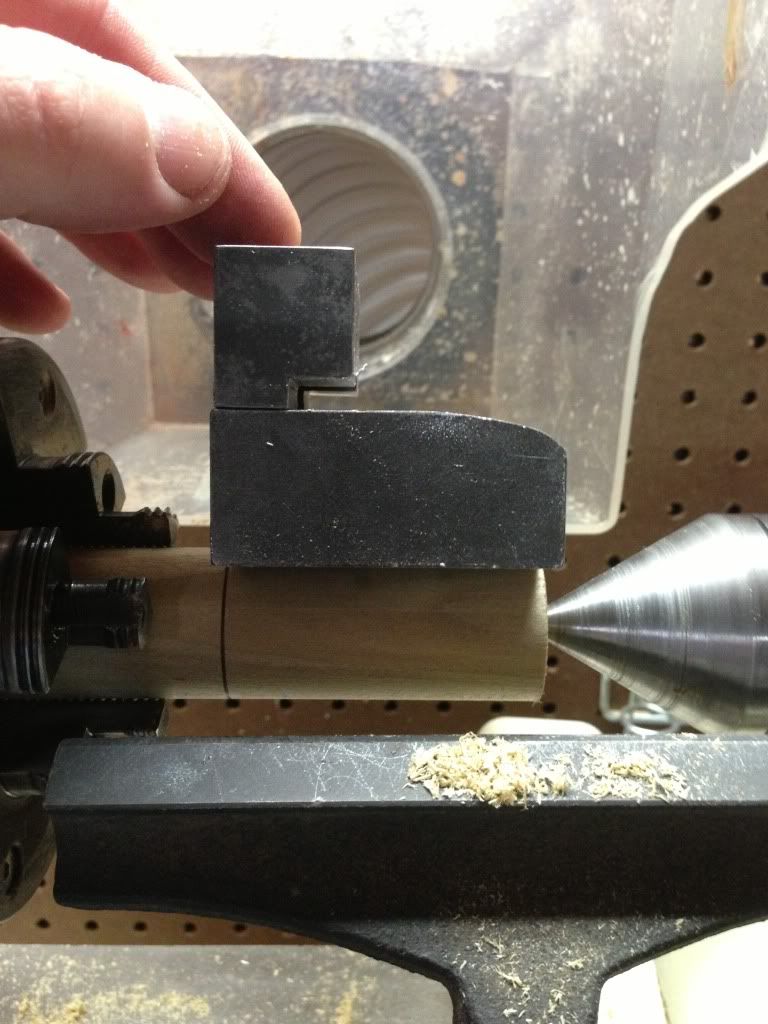

So I also decided to do some 1 piece TB's and here's how I do that. I take the 1 1/8" dowel and the the TB jig and mark where I need to make the 5/8" part of the TB.

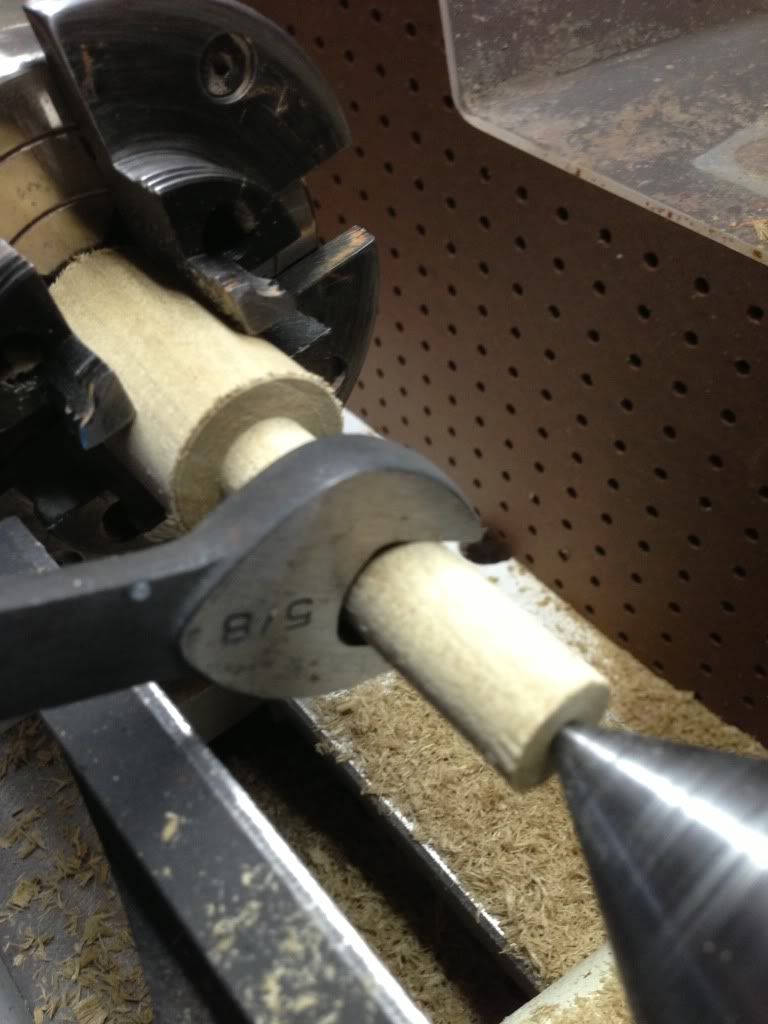

I use a 5/8" wrench to tell me where to stop

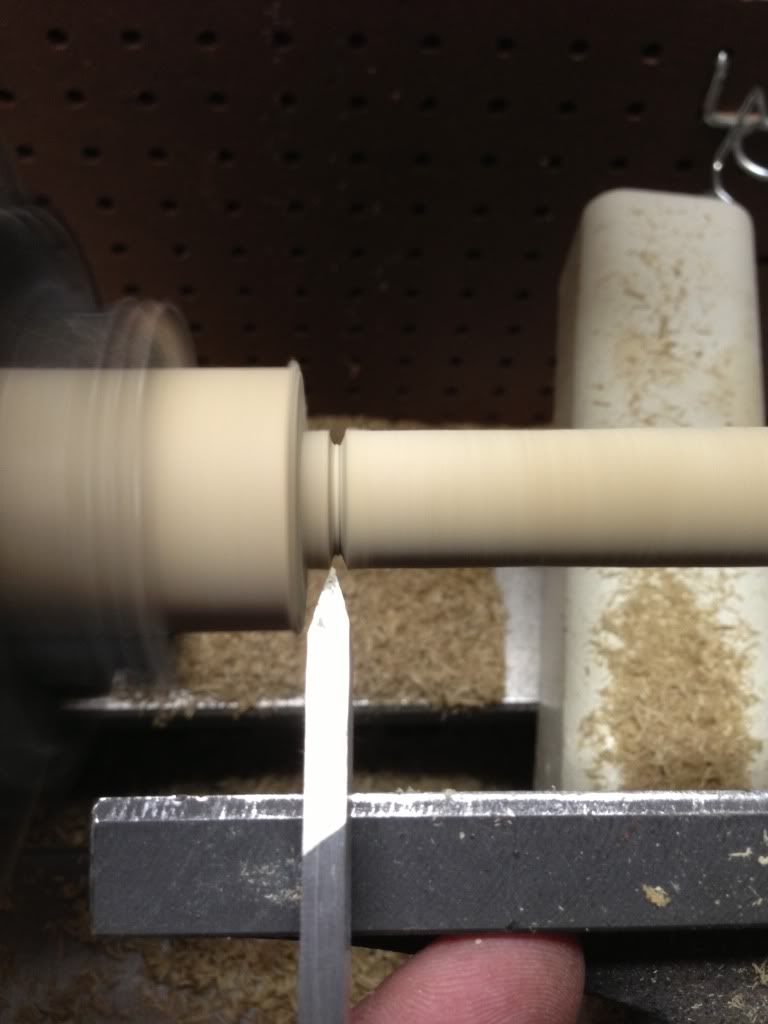

Next all the TB's I put a o-ring grove in all the TB's I've done


So next for this experiment I wanted to make sure all the TB's both 1 and 2 piece are all uniform. I do this by measuring and the 1 1/8" portion of the TB and truing up the ends to make them all the same by sticking the 5/8" portion of the TB into the collet chuck and adjusting to whatever size I need. For this experiment I did 1.5" long portion of the exhaust.

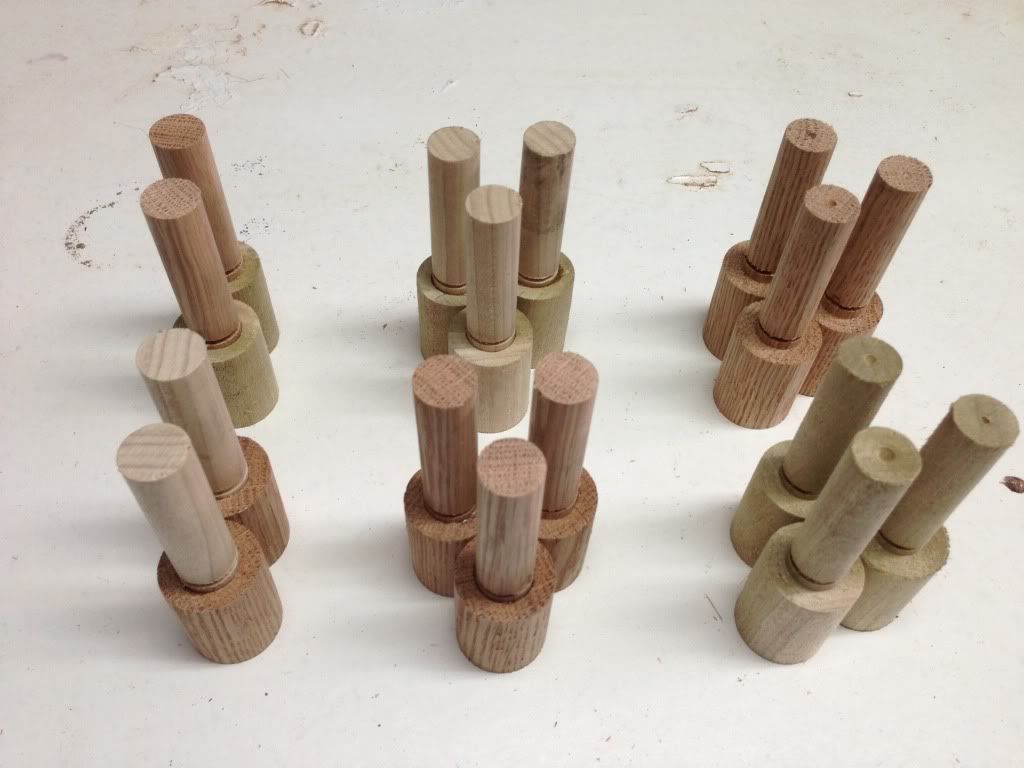

Here's what they all looked like once complete for the experiment

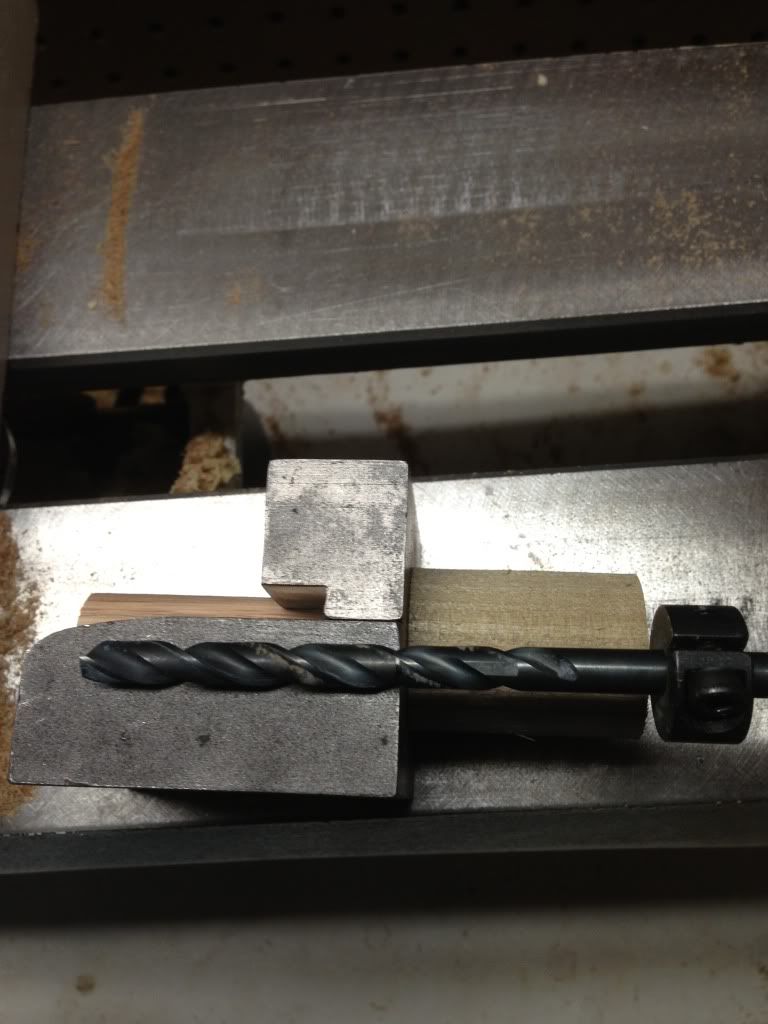

Now here's the part where you drill the blank I used 1 1/4" with a drill stop for this experiment but ill be drilling different lengths to determine the best sound. I also use a step drill bit to bore out the end exhaust.

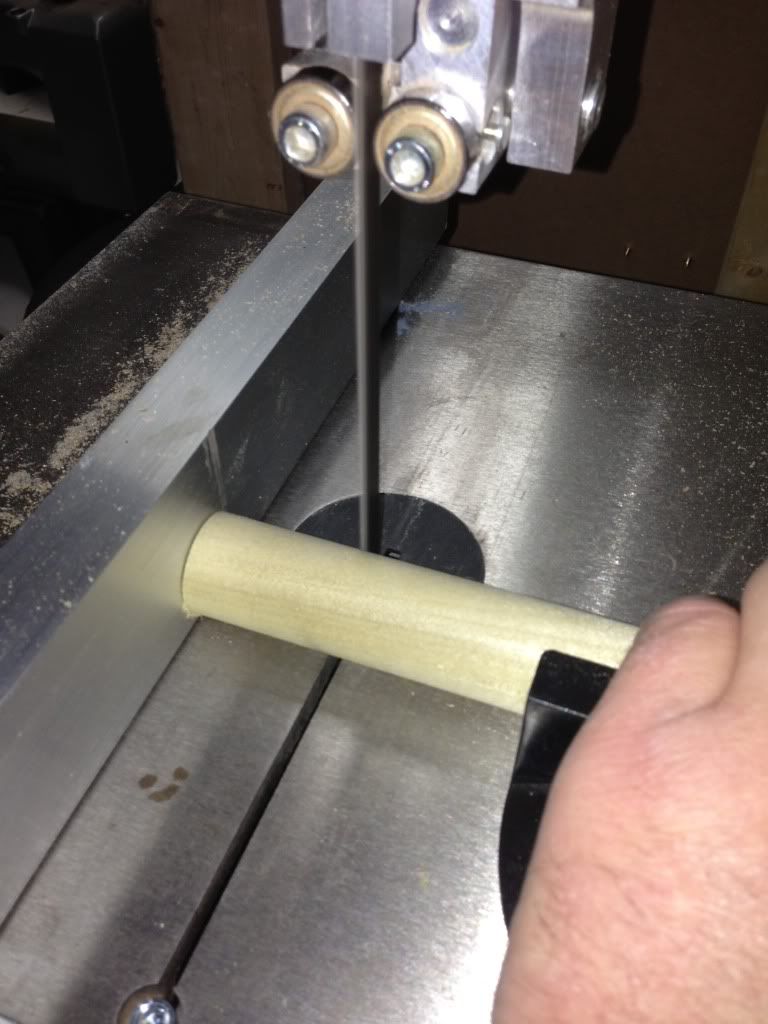

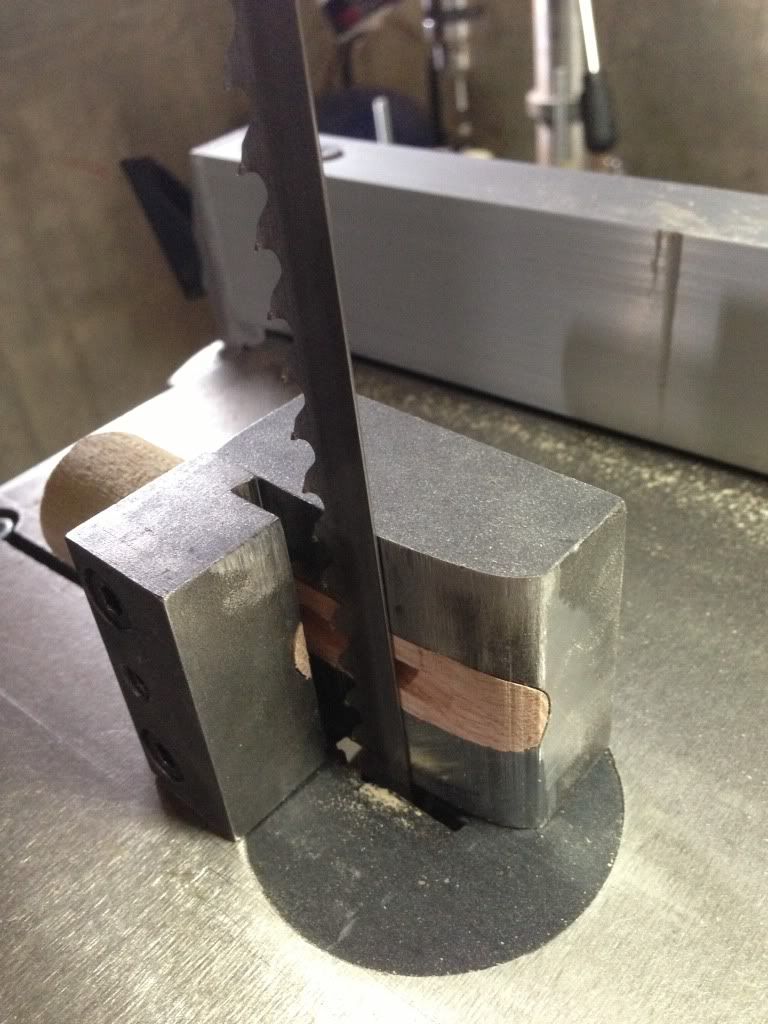

Next I use a band saw and cut out the insert while the TB is in the jig.


Being new to making TB's I've learned that getting the sound right is no easy task every file stroak makes a difference the hole size and length matters the exhaust size matters etc. etc. etc. TAKE NOTES!!!!!

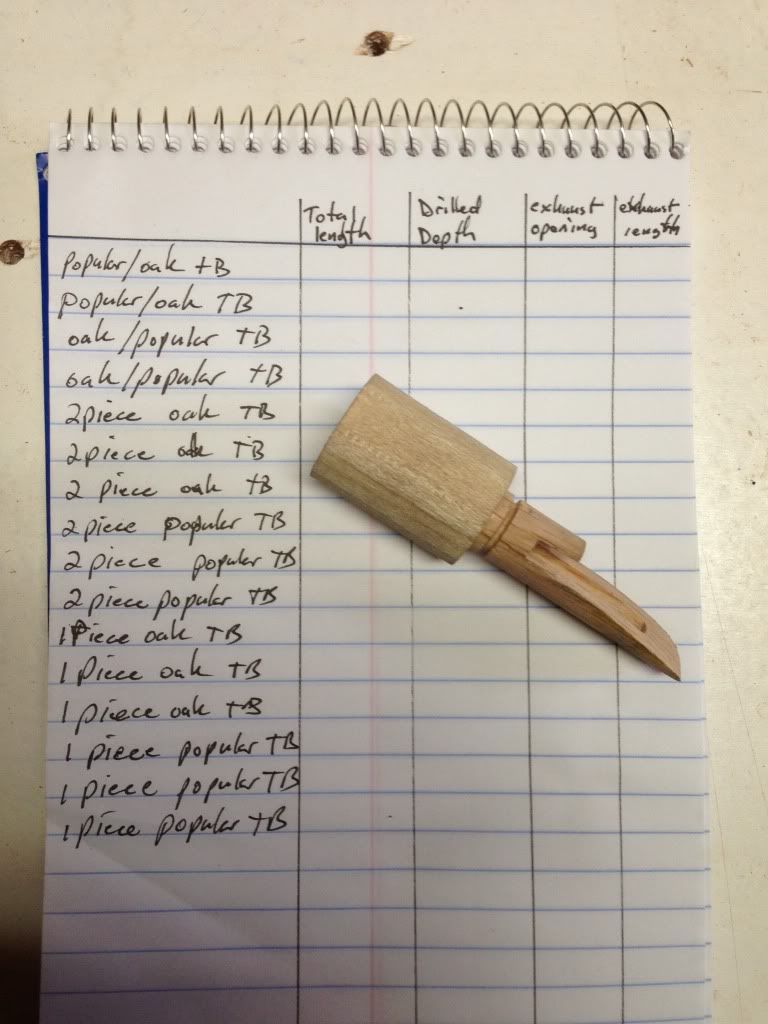

For this experiment I am keeping track of total length, hole length, exhaust size and exhaust length there's also hole size and different types of wood etc. etc. etc. it is very important to keep track if your just starting out! Thanks for viewing and good luck!
